What is the difference between a purifier and a clarifier?

Purifier vs Clarifier: What Is the Difference?

When choosing an oil separation system, the terms purifier and clarifier can be confusing. Both are used to remove contaminants, but they are designed for different separation requirements.

The main difference is simple:

A purifier separates oil from both water and solids, while a clarifier primarily removes solid particles from oil.

Understanding this difference helps you ｓｅｌｅｃｔ the right equipment for fuel oil, lubricating oil, hydraulic oil, or other industrial fluids.

What Is a Purifier?

A purifier is a separation system designed to remove multiple types of contaminants from a liquid. In oil treatment applications, it commonly removes:

• Free and emulsified water

• Solid particles

• Sludge and other heavy contaminants

Centrifugal oil purifiers are widely used because they use centrifugal force to separate contaminants according to their density. During operation, heavier water and solids move outward, while the cleaner oil remains closer to the center.

For oil containing both water and solid contamination, a purifier provides more comprehensive separation.

What Is a Clarifier?

A clarifier is primarily designed to remove solid contaminants from a liquid.

In centrifugal oil treatment, a clarifier separates solids from oil based on the density difference between the oil and solid particles. Unlike a purifier, it is generally not designed to continuously separate a separate water phase.

Clarifiers are therefore more suitable when the main contamination problem is dust, metal particles, carbon deposits, sludge, or other suspended solids, while water contamination is limited or not a major concern.

The term "clarifier" is also commonly used in water and wastewater treatment, where clarifiers remove suspended solids through sedimentation. Therefore, the exact meaning depends on the industry and equipment design.

Purifier vs Clarifier: Key Differences

The most important difference is the type and number of contaminants the equipment can separate.

In other words, if the oil contains water and solids at the same time, a purifier is usually the more appropriate choice. If the main problem is solid contamination, a clarifier may be sufficient.

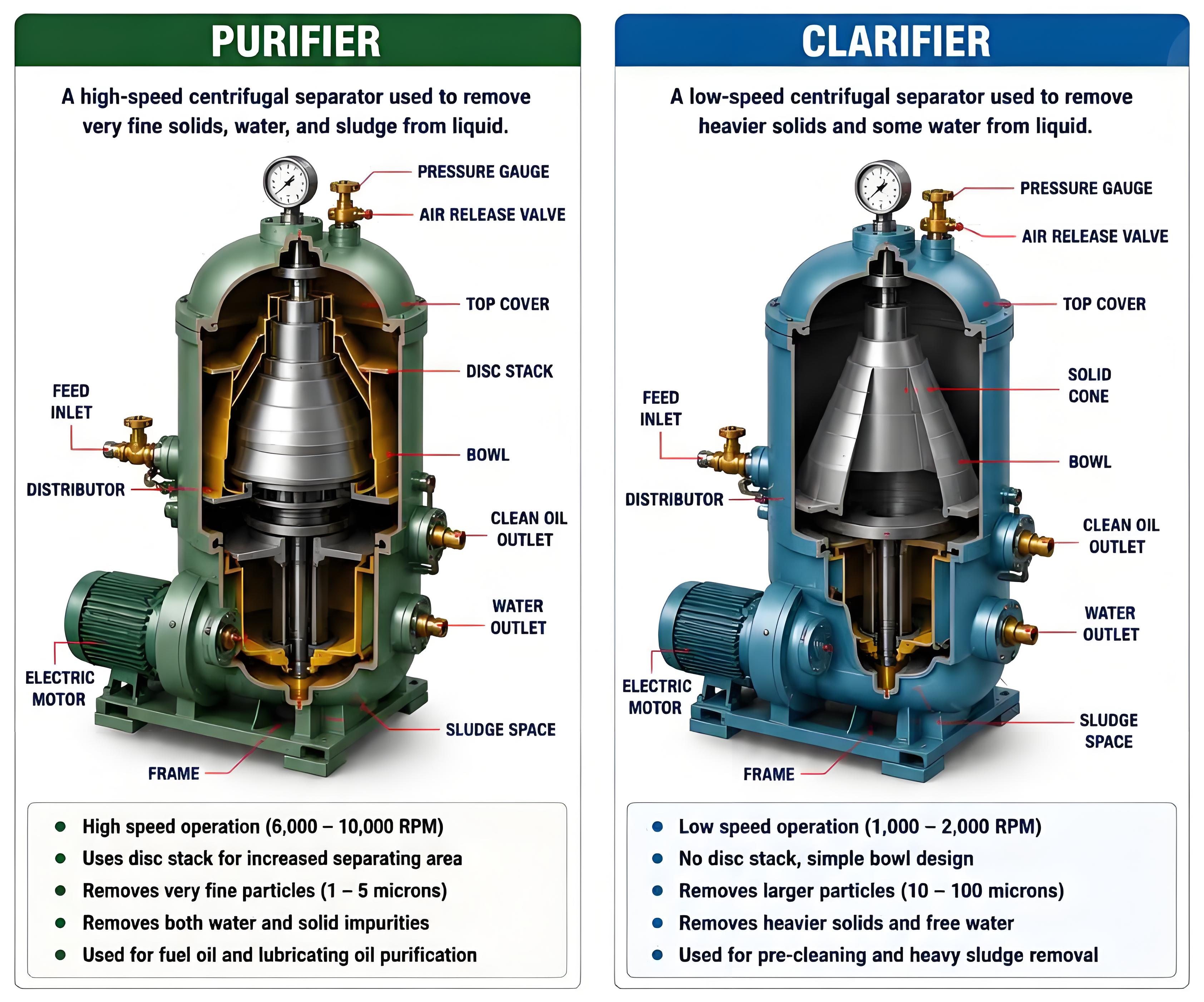

How Does the Separation Process Differ?

Both systems can use centrifugal force, but their separation objectives are different.

1.Purifier

A centrifugal purifier creates a strong centrifugal field. Because water and solids have higher densities than oil, they move toward the outer part of the separation chamber, while purified oil moves toward the center.

This allows the system to perform three-phase separation:

Oil + Water + Solids

This is particularly useful for contaminated fuel oil, lubricating oil, and other industrial fluids.

2.Clarifier

A clarifier is mainly designed for two-phase separation:

Oil + Solids

The centrifugal force causes solid particles to migrate outward and collect in the solids area, while the cleaner oil is discharged.

Therefore, a clarifier is simpler when water separation is not required.

Which One Should You Choose?

The choice between a purifier and clarifier should be based on the actual contamination in your oil, rather than simply the required flow rate.

1.Choose a purifier when:

• The oil contains both water and solid particles.

• Water contamination is a significant concern.

• You need continuous oil-water-solid separation.

• The equipment is used for fuel oil or contaminated lubricating oil.

2.Choose a clarifier when:

• Solid particles are the primary contaminant.

• Water separation is not required.

• You mainly need to remove sludge, dirt, or metal particles.

• A simpler solid-liquid separation process is sufficient.

For applications involving severe water contamination, a centrifugal purifier may also be combined with other technologies such as vacuum dehydration and fine filtration.

Purifier or Clarifier for Industrial Oil Treatment?

For industrial oil treatment, the decision should also consider:

• Oil type: transformer oil, turbine oil, hydraulic oil, lubricating oil, or fuel oil

• Contamination: water, particles, sludge, or a combination

• Required flow rate: L/h or L/min

• Required filtration accuracy

• Operating temperature

• Required final oil cleanliness

For example, if you are treating transformer oil and the main problems are moisture and low dielectric strength, a simple clarifier is usually not enough. A vacuum oil purifier designed for dehydration and fine filtration is generally more suitable.

For hydraulic or lubricating oil containing mainly solid particles, a filtration system may be sufficient when water contamination is minimal.

FAQ

Is a purifier better than a clarifier?

Not necessarily. A purifier is more versatile because it can remove both water and solids, but a clarifier can be more suitable when only solid contamination needs to be removed.

Can a clarifier remove water from oil?

A conventional centrifugal clarifier is primarily designed for solid separation and is generally not intended for continuous oil-water separation. If water removal is required, a purifier or dedicated dehydration system should be considered.

What is the main difference between a purifier and a clarifier?

The main difference is the separation capability. A purifier is designed for oil, water, and solid separation, while a clarifier primarily separates solids from oil.

Which is better for contaminated lubricating oil?

It depends on the contamination. If the lubricating oil contains both water and solids, a purifier is usually the better choice. If it mainly contains solid particles, a clarifier or fine filtration system may be sufficient.

Conclusion

The difference between a purifier and a clarifier comes down to what contaminants need to be removed.

A purifier is designed for more comprehensive separation, typically removing water and solid contaminants from oil. A clarifier primarily focuses on solid removal.

Before selecting equipment, identify the oil type, contamination level, water content, required capacity, and required cleanliness. This will help you choose a separation system that matches the actual operating conditions rather than simply choosing the more complex option.
